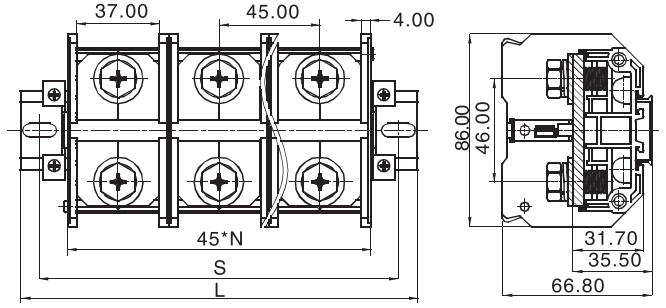

位數 N |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
|
鋁軌長L |
137 |
177 |
217 |
257 |
317 |
357 |
397 |
437 |
497 |
537 |
577 |
617 |
677 |
717 |
757 |
|
|
固定孔距s |
120 |
160 |
200 |
240 |
300 |
340 |
380 |
420 |
480 |
520 |
560 |
600 |
660 |
700 |
740 |
|
端子間距(Center Spase) |
45. 0mm |
|
壓線範圍(Wire Range) |
150mm2(Max) |
|
螺釘扭距(Screw Torque) |
60 Ibf. in |
|
額定電流(Rated Current) |
600V,300A |
|
衝擊耐壓(Surge Voltage) |
6000V |
|
絕緣材料(Insulation Body) |
PC,UL94,V-0 |
|
螺釘材質(Screw Material) |
M10,STEEL |
|
端子材質(TerminaI Body) |
BRASS |
|
操作溫度(Temperature) |
-40°C~105°C |
